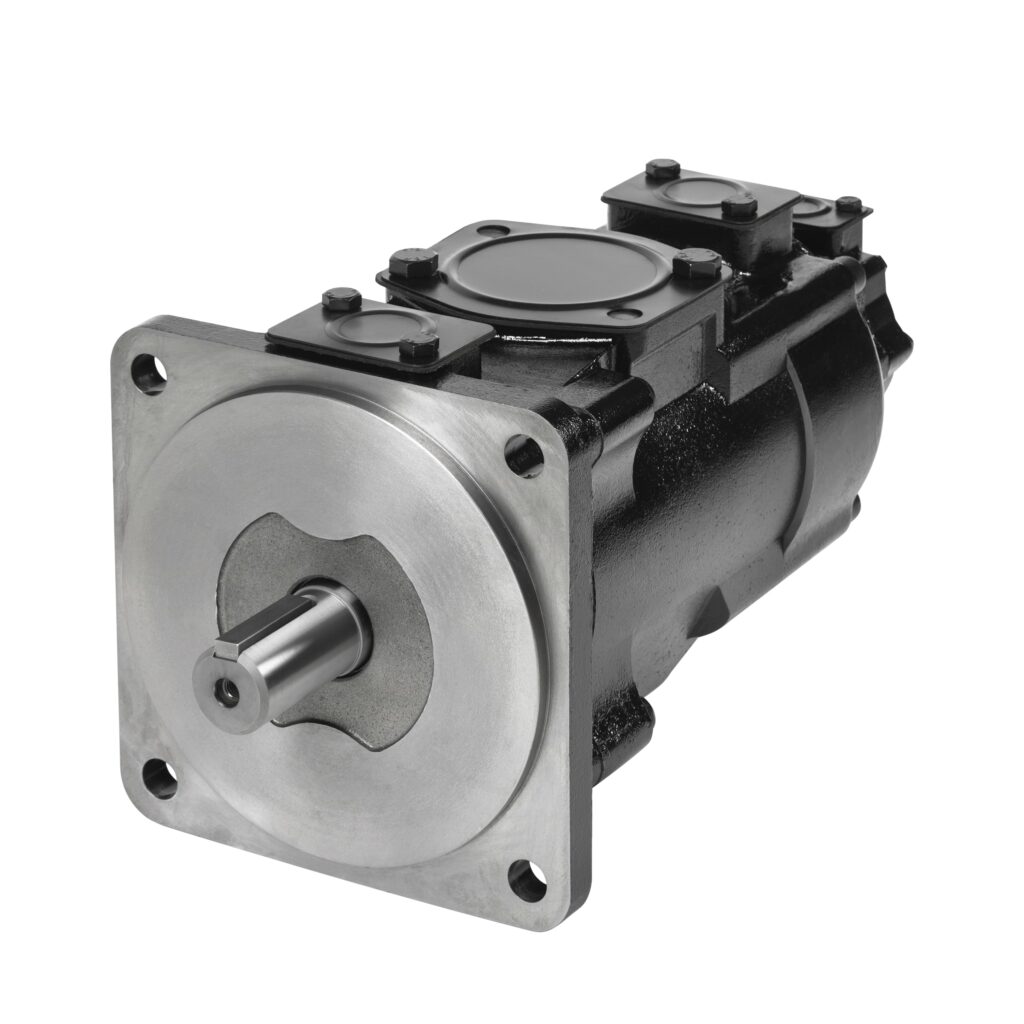

Parker Denison Aftermarket T6edc New 3

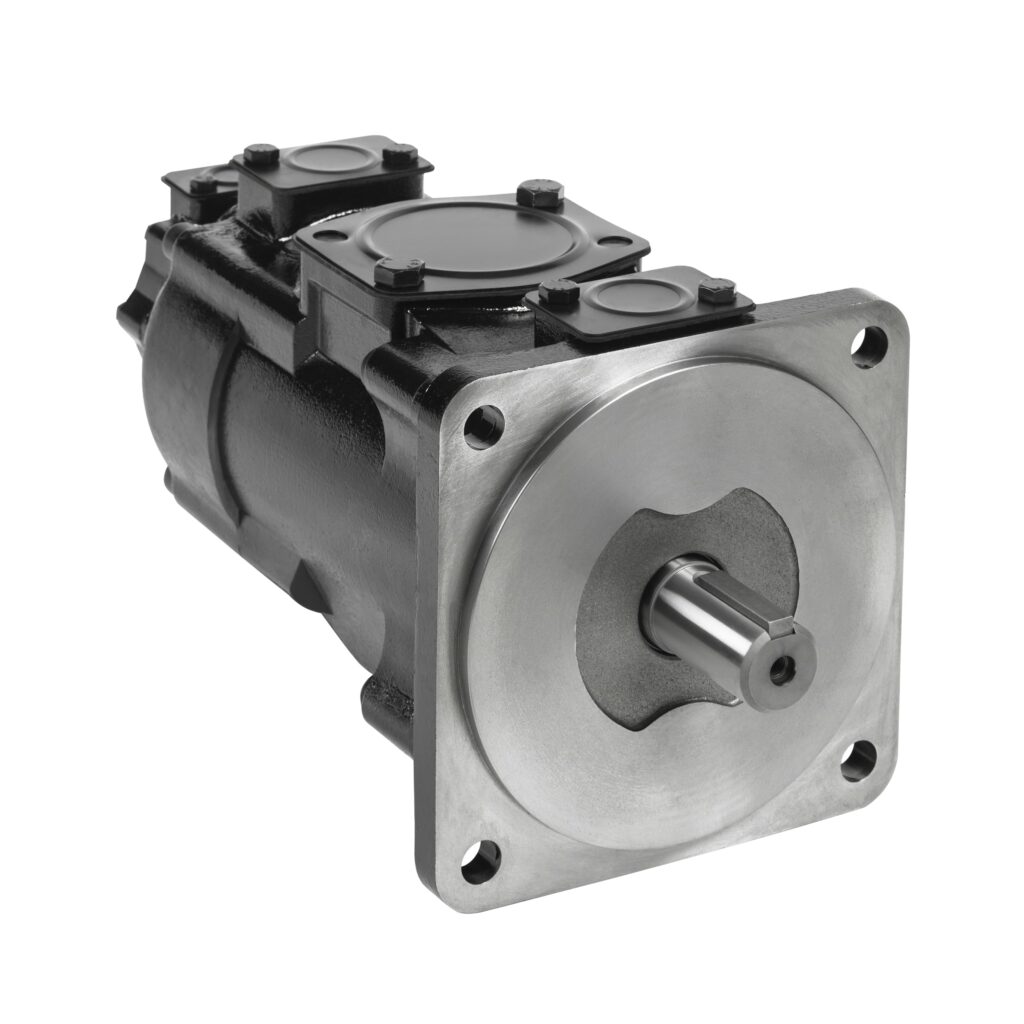

Parker Denison Aftermarket T6edc New 4

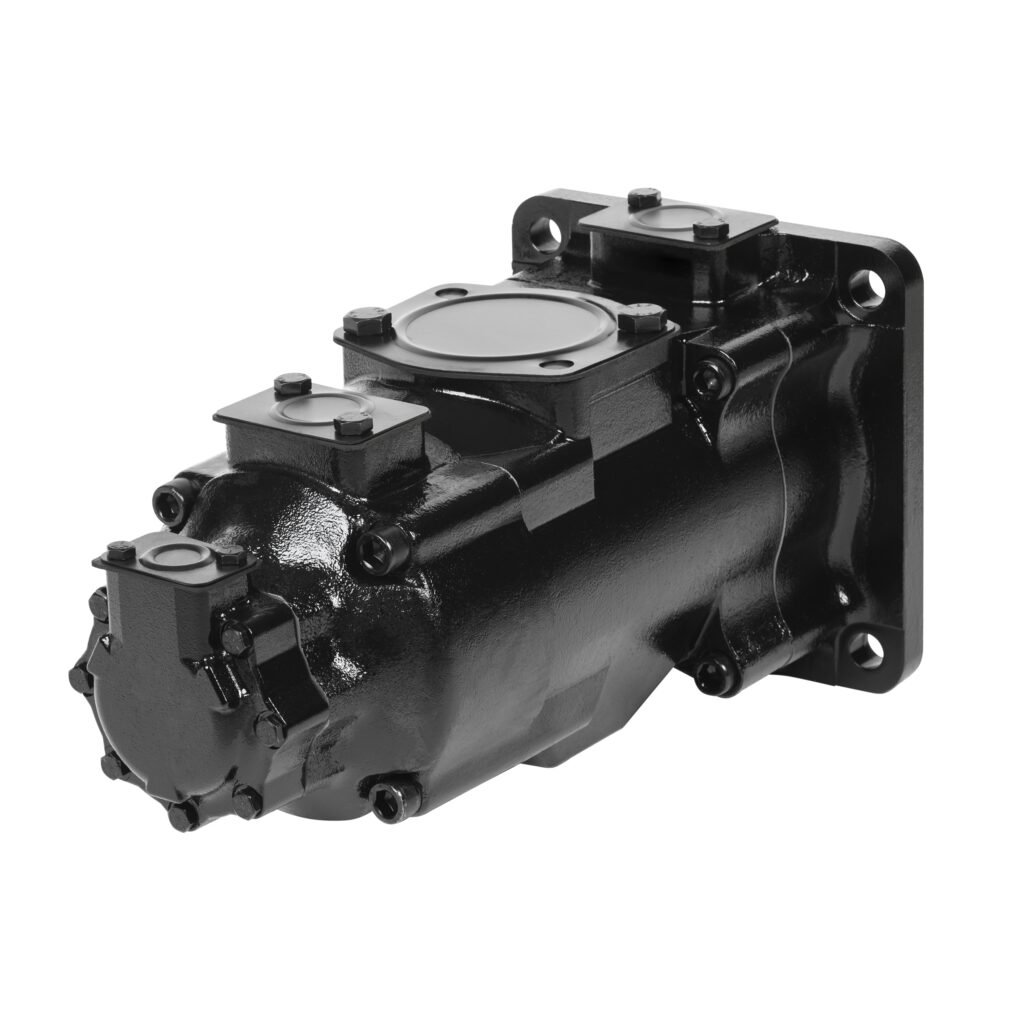

Parker Denison Aftermarket T6edc New 2

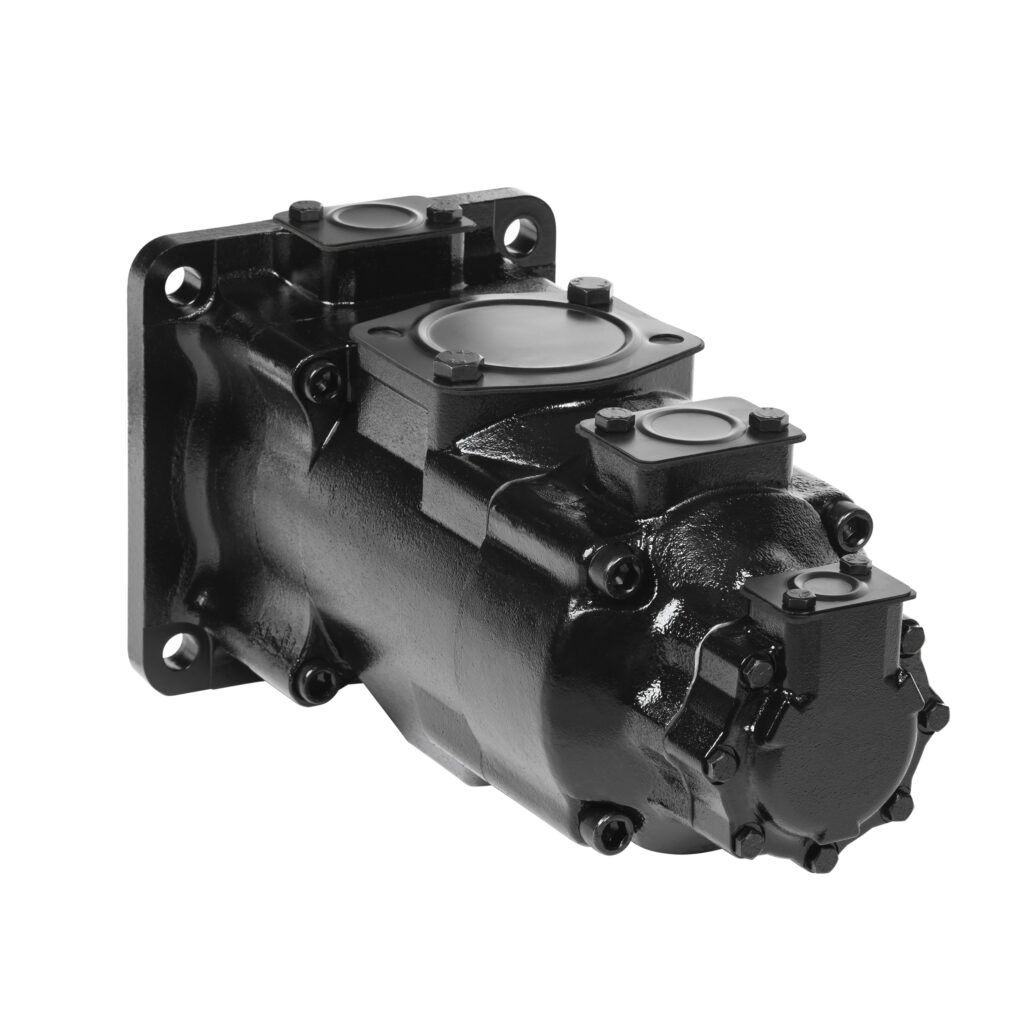

Parker Denison Aftermarket T6edc New 1
  1. Parker Denison Aftermarket T6edc New 3
  2. Parker Denison Aftermarket T6edc New 4
  3. Parker Denison Aftermarket T6edc New 2
  4. Parker Denison Aftermarket T6edc New 1

New Aftermarket Vane Pump Parker Denison T Series Triple Pump T6EDC Available

$1251

Features

  • With dowel pin vane structure, it can work in high pressure, low noise and long lifetime.
  • This vane pump can fit wide viscosity hydraulic oil and be started at low temperature and work at high temperature.
  • As the vane pump adopts bilabial structure vane, it has oil pollution resistance and wide speed scope.

Options

  • Series *

  • Flange Type Code *

  • Shaft End Displacement *

  • Middle Displacement *

  • Cover End Displacement *

  • Type of Shaft *

  • Direction of Rotation *

  • Porting Combination *

  • Design Letter *

  • Seal Class *

  • Port Dimension *

Category:

There are varieties of displacement selections for this vane pump from 47,6 to 190,5 ml/rev. The max pressure can support up to 250 bar for the instance use case and up to 210 bar for the continuous case. Also, The rotation speed supports from 600 to 2500 r/min using the different oil types.This vane pump allows low flow at high pressure and high flow at lower pressure. A clever way to optimize your circuit design and to sustain consistency power and flow. This pump also provides fast pressure cycle change with a precise flow.

Here are several links for other T Series Single Pump:

T7B(S)

T7D(S)

T7E(S)

T6C

T6D

T6E

Here are several links for Double and Triple Pumps use this T6D Cartridge for replacement:

T6-DC

T6-ED

T6-DCC

T6-EDC

Here are several links for Single, Double and Triple Pumps use this Cartridge for replacement:

T Series Double Pump Cartridge Front Kit T67DB T67DC T6DC

T Series Double Pump Cartridge Rear Kit T6ED

T Series Triple Pump Cartridge Front Kit T67DBB T67DCB T6DCC T67DDB(S) T6DDC

T Series Triple Pump Cartridge Middle Kit T67DDB(S) T6DDC T67EDB T6EDC

Vane Pump More Features & Benefits:
  • Reduced energy consumption: Up to 94% Efficiency; reduces heat generation.
  • Low noise level: Optimized for the lowest noise level in the smallest envelope.
  • Increased lifetime: Double lip vane design raises dirt resistance to increase lifetime.
  • Easy installation: Use the same body for all displacements. The port orientation allows customized installation.
Applications:
  • Presses
  • Injection machines
  • Lubrication
  • Machines tools
General Applications Instructions:
  • Check speed range, pressure, temperature, fluid quality, fluid viscosity, and pump rotation.
  • Check the inlet conditions of the pump, if it can accept the application requirements.
  • Check the type of shaft: if it will support the operating torque.
  • Check the coupling to cut pump shaft load (weight, misalignment).
  • Filtration: must be adequate for the lowest contamination level.
  • Check the environment of the pump: avoid noise reflection, pollution, and shocks.
Start-up :
  • Fill the tank up with a clean fluid in proper conditions.
  • We recommend flushing the system with an external pump before the start-up.
  • It is important to bleed the air off the circuit & the pump itself.
  • The first valve on the circuit should be open to the tank.
  • We recommend the use of air bleed-off valves.It is possible to bleed off the air by creating a leak in the P port of the pump.
More:
  • We stock replacement parts and cartridge kits for our T series aftermarket line.
  • We are expanding our product range, so please check back often for our new product offering.
  • If you have special requests, feel free to contact us. By the way, we have a strong project team for customized requirements.
Weight 100 kg
Series

T6EDC
Flange Type Code

M – Truck type, None – Industrial type, P – Truck type double seal kits
Shaft End Displacement

042, 045, 050, 052, 054, 057, 061, 062, 066, 072, 085
Middle Displacement

014, 017, 020, 022, 024, 028, 031, 035, 038, 042, 045, 052, 061, B14, B15, B17, B20, B22, B24, B28, B31, B35, B38, B42, B45, B50
Cover End Displacement

003, 005, 006, 008, 010, 012, 014, 017, 020, 022, 025, 028, 031, B03, B04, B05, B06, B07, B08, B09, B10, B11, B12, B14, B15, B17, B20, B22, B28, B31
Type of Shaft

1, 2, 3
Direction of Rotation

L = Counter-clockwise, R = Clockwise
Porting Combination

00, 01, 02, 03, 04, 05, 06, 07, 08, 09, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 1A, 1B, 1C, 1D, 1E, 1F, 1G, 1H, 1J, 1K, 1L, 1M, 1N, 1P, 1R, 1S, 1T, 1U, 1V, 1W, 1X, 1Y, 1Z, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 2A, 2B, 2C, 2D, 2E, 30, 31, 32, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 47, 48, 49, 50, 51, 52, 53, 54, 55, 56, 57, 58, 59, 60, 61, 62, 63, 64, 65, 66, 67, 68, 69, 70, 71, 72, 73, 74, 75, 76, 77, 78, 79, 80, 81, 82, 83, 84, 85, 86, 87, 88, 89, 90, 91, 92, 93, 94, 95, 96, 97, 98, 99
Design Letter

A
Seal Class

1 = S1 BUNA N – 0,7 bar max. (for mineral oil), 4 = S4 EPDM – 0,7 bar max. (for fire resistant fluids), 5 = S5 VITON® – 0,7 bar max. (for mineral oil and fire resistant fluids)
Port Dimension

00, 01
