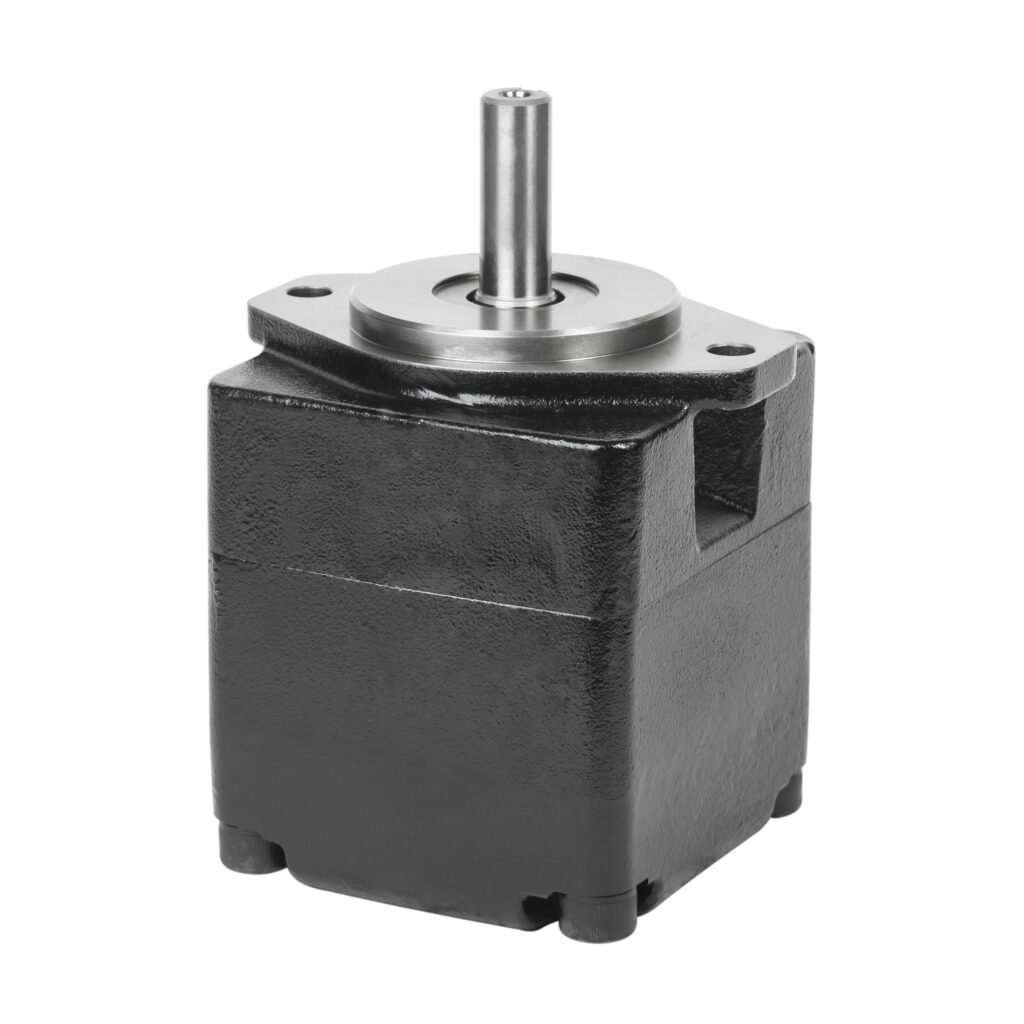

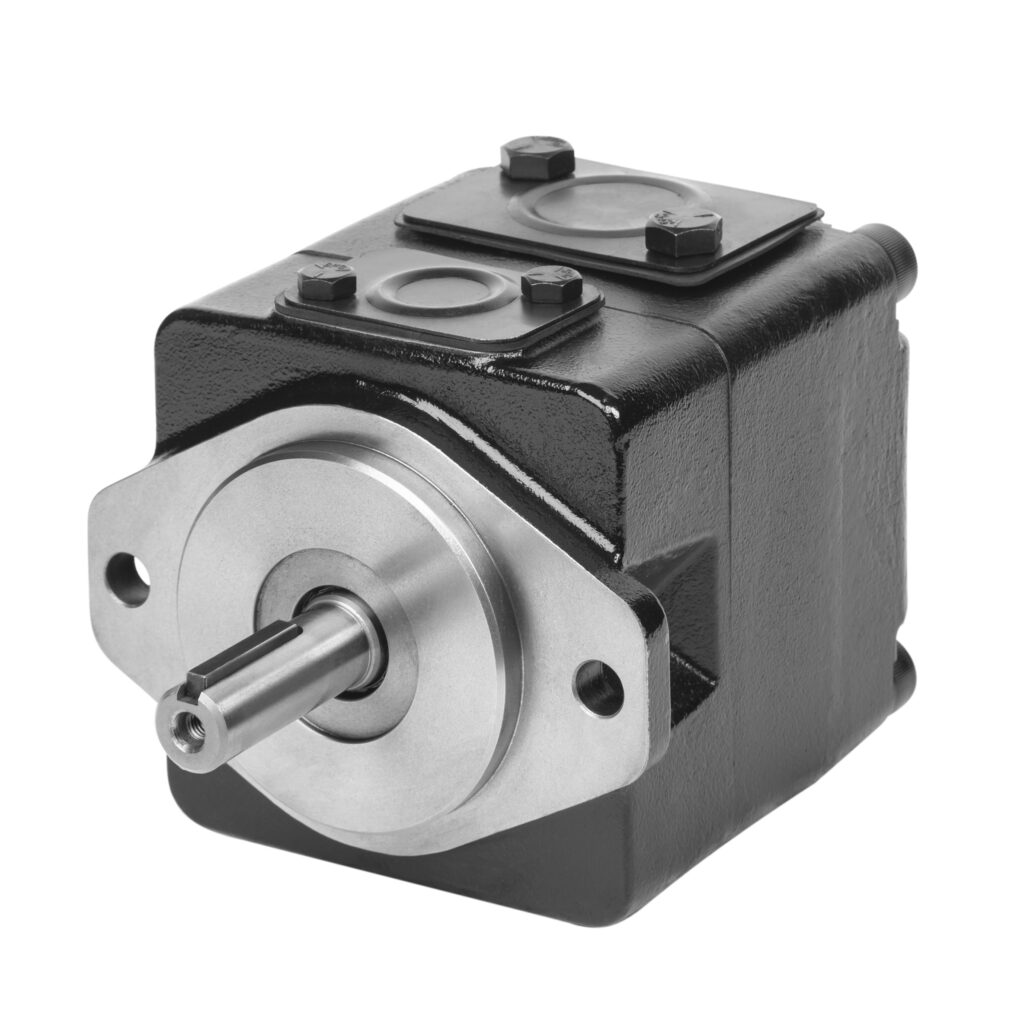

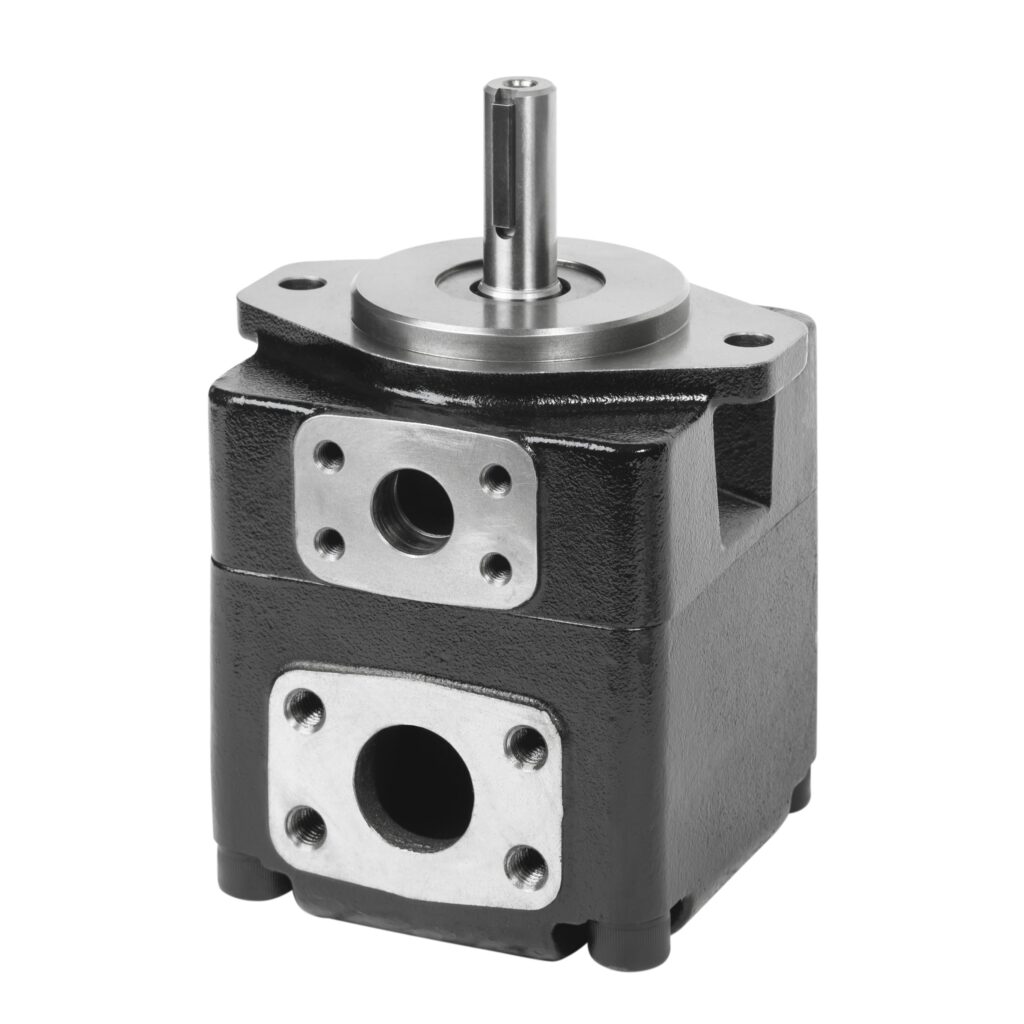

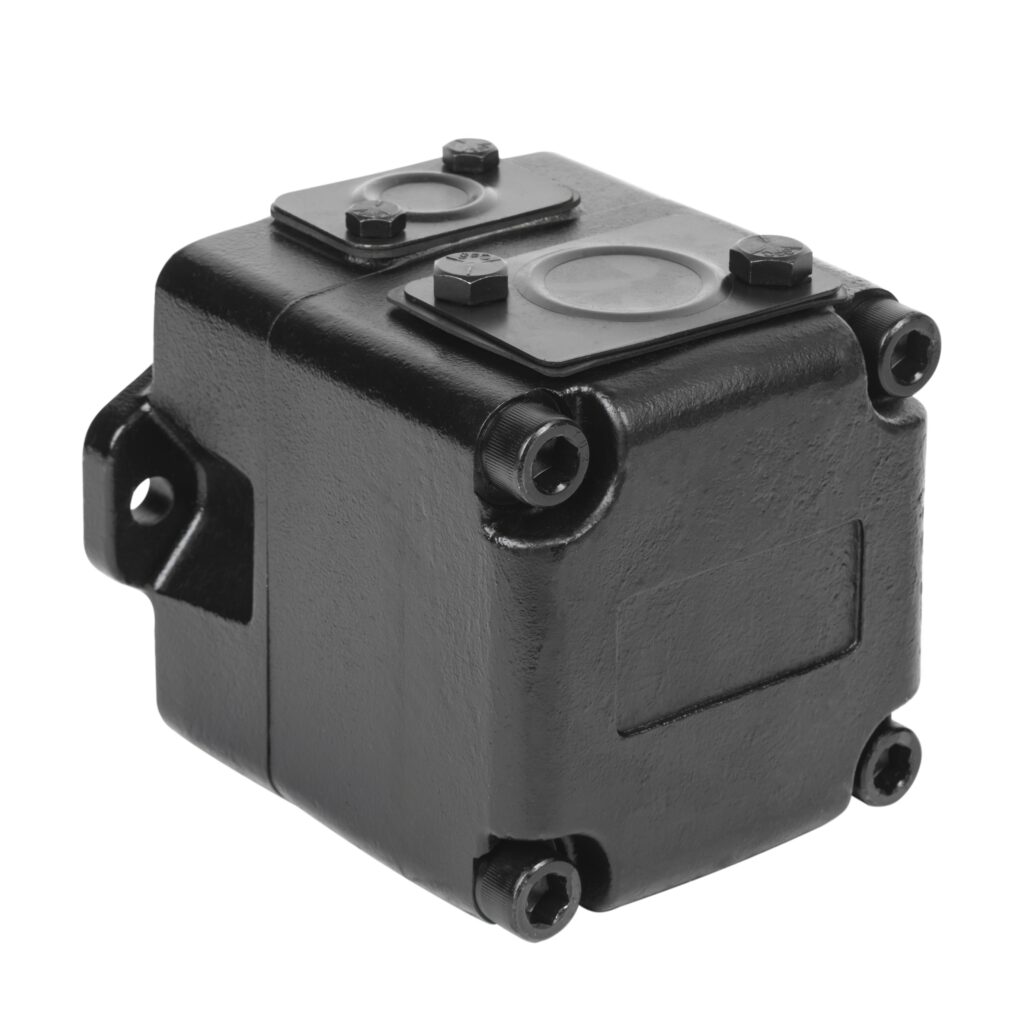

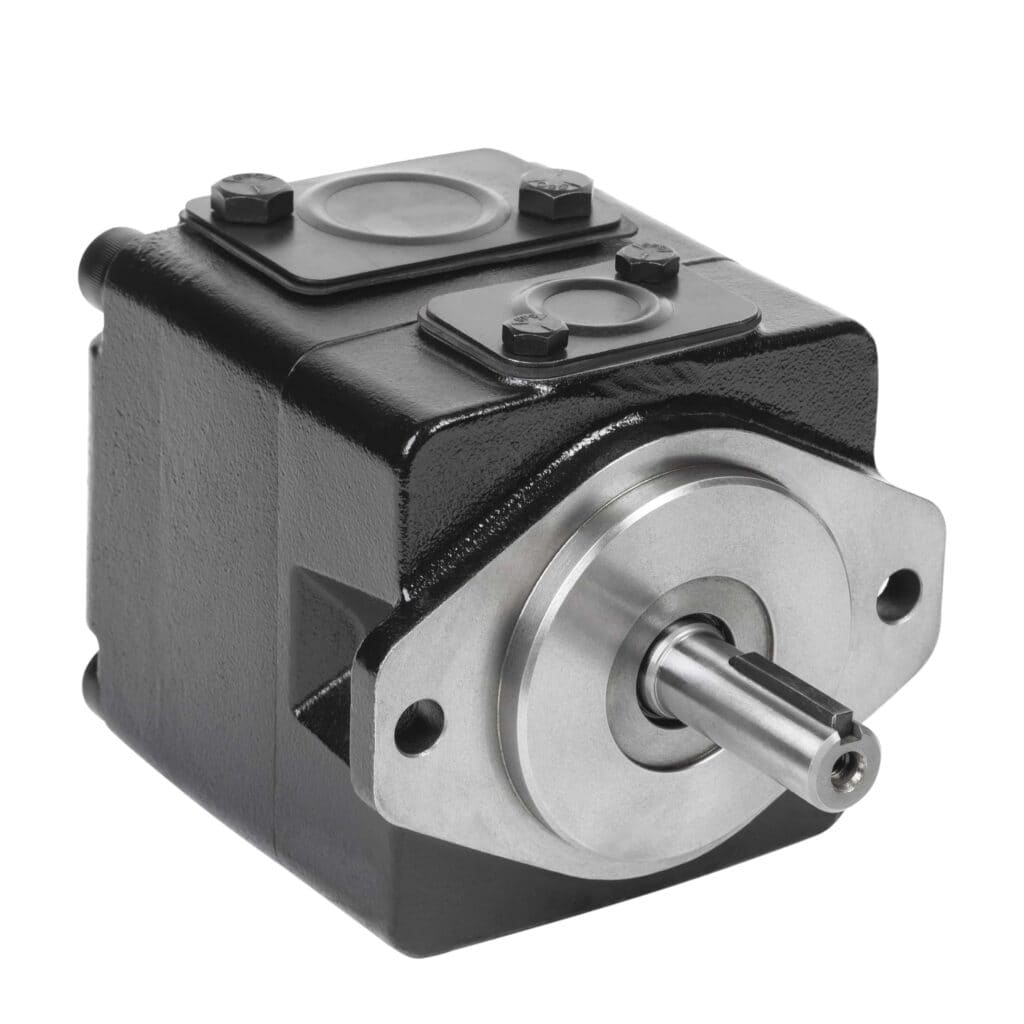

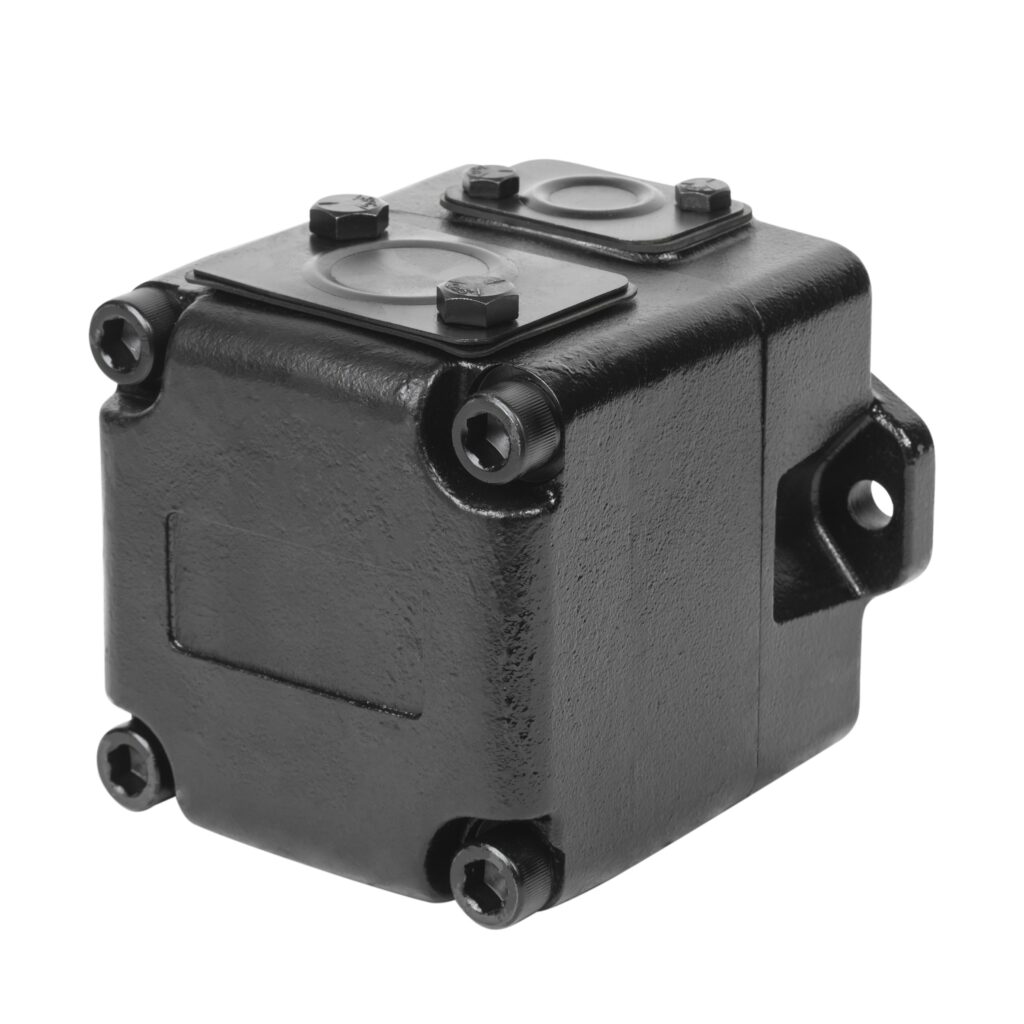

There are varieties of displacement selections for this vane pump from 5,8 to 50,0 ml/rev. The max pressure can support up to 280 bar for the instance use case and up to 240 bar for the continuous case. Also, The rotation speed supports from 600 to 3600 r/min using the different oil types.This vane pump allows low flow at high pressure and high flow at lower pressure. A clever way to optimize your circuit design and to sustain consistency power and flow. This pump also provides fast pressure cycle change with a precise flow.
Here are several links for other T Series Single Pump:
Here are several links for Double and Triple Pumps use this T7B(S) Cartridge for replacement:
Here are several links for Single, Double and Triple Pumps use this T7B(S) Cartridge for replacement:
T Series Single Pump Cartridge T7B(S)
T Series Double Pump Cartridge Front Kit T7BB(S)
T Series Double Pump Cartridge Rear Kit T7BB(S) T7DB(S) T7EB(S) T67EB T67CB T67DB
T Series Triple Pump Cartridge Rear Kit T67DBB T67DCB T67DDB(S) T67EDB
T Series Triple Pump Cartridge Middle Kit T67DBB
Vane Pump More Features & Benefits:
- Reduced energy consumption: Up to 94% Efficiency; reduces heat generation.
- Low noise level: Optimized for the lowest noise level in the smallest envelope.
- Increased lifetime: Double lip vane design raises dirt resistance to increase lifetime.
- Easy installation: Use the same body for all displacements. The port orientation allows customized installation.
Applications:
- Presses
- Injection machines
- Lubrication
- Machines tools
General Applications Instructions:
- Check speed range, pressure, temperature, fluid quality, fluid viscosity, and pump rotation.
- Check the inlet conditions of the pump, if it can accept the application requirements.
- Check the type of shaft: if it will support the operating torque.
- Check the coupling to cut pump shaft load (weight, misalignment).
- Filtration: must be adequate for the lowest contamination level.
- Check the environment of the pump: avoid noise reflection, pollution, and shocks.
Start-up :
- Fill the tank up with a clean fluid in proper conditions.
- We recommend flushing the system with an external pump before the start-up.
- It is important to bleed the air off the circuit & the pump itself.
- The first valve on the circuit should be open to the tank.
- We recommend the use of air bleed-off valves.It is possible to bleed off the air by creating a leak in the P port of the pump.
More:
- We stock replacement parts and cartridge kits for our T series aftermarket line.
- We are expanding our product range, so please check back often for our new product offering.
- If you have special requests, feel free to contact us. By the way, we have a strong project team for customized requirements.
